Mains Adaptation Transformers: TPA / XPA Range

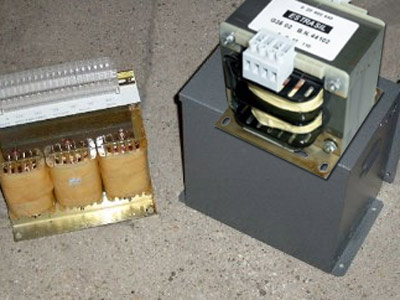

A range of 4 wire 3-phase auto transformers with UK, US and continental ratings.
When a simple voltage change is required (such as Japanese 3 phase 200v to European 400v) and Isolation is not required, an Autotransformer can be used. This results in a substantial reduction in weight and cost.
Price list: GP 3PHASE PRICES AS AT 2024
TPA Range: 415/380V Step up or down 50/60Hz.
| Power Rating KVA (Cont.) | Type | Code | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 5 | Open Enclosed |
TPA/05 TPA/05/E |
155x110x170 245x205x255 |
6 12 |
| 8 | Open Enclosed |
TPA/08 TPA/08/E |
180x120x190 245x205x255 |
9 16 |
| 15 | Open Enclosed |
TPA/15 TPA/15/E |
265x160x230 330x215x310 |
16 20 |
| 25 | Open Enclosed |
TPA/25 TPA/25/E |
265x180x270 330x215x310 |
18 25 |
| 45 | Open Enclosed |
TPA/45 TPA/45/E |
265x200x270 330x270x355 |
26 32 |
| 60 | Open Enclosed |
TPA/60 TPA/60/E |
265x210x265 355x330x460 |
28 38 |
| 85 | Open Enclosed |
TPA/85 TPA/85/E |
340x200x380 450x325x450 |
38 47 |
| 125 | Open Enclosed |
TPA/125 TPA/125/E |
340x240x380 550x400x525 |
46 58 |
XPA Range: 415/380/220/208/200V Step up or down 50/60Hz.
| Power Rating KVA (Cont.) | Type | Code | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 5 | Open Enclosed |
XPA/5 XPA/5/E |
260x125x230 345x250x350 |
17 24 |
| 10 | Open Enclosed |
XPA/10 XPA/10/E |
265x190x280 345x250x350 |
30 38 |
| 15 | Open Enclosed |
XPA/15 XPA/15/E |
305x263x160 525x450x550 |
15 20 |
| 20 | Open Enclosed |
XPA/20 XPA/20/E |
305x220x450 625x500x650 |
49 70 |
| 30 | Open Enclosed |
XPA/30 XPA/30/E |
450x200x450 625x500x650 |
79 109 |
| 45 | Open Enclosed |
XPA/45 XPA/45/E |
450x205x450 625x500x650 |
94 124 |
